A gentle introduction to Kubernetes Operators through a simplified example.

Operators

Operators are software extensions to Kubernetes that make use of custom resources to manage applications and their components. Operators follow Kubernetes principles, notably the control loop.
The Operator pattern aims to capture the key aim of a human operator who is managing a service or set of services. Human operators who look after specific applications and services have deep knowledge of how the system ought to behave, how to deploy it, and how to react if there are problems.
The most common way to deploy an Operator is to add the Custom Resource Definition and its associated Controller to your cluster. The Controller will normally run outside of the control plane, much as you would run any containerized application. For example, you can run the controller in your cluster as a Deployment.

— Kubernetes — Operator pattern

For additional information, including motivation, read the sentinel article on Operators; Introducing Operators: Putting Operational Knowledge into Software.

Creating Operators

Creating Custom Resource Definitions (CRDs) is fairly straightforward; described in Extend the Kubernetes API with CustomResourceDefinitions. However, creating the controller is a non-trivial task; see the Kubernetes’ reference example.

The good news, however, is that there are a number of frameworks for creating Operators that simplify the task, e.g.,

KUDO
kubebuilder
Metacontroller
Operator SDK (aka. Operator Framework)

In this article, we will be using Operator SDK; it has the most GitHub stars and supports a variety of languages.

Operator SDK

This project is a component of the Operator Framework, an open source toolkit to manage Kubernetes native applications, called Operators, in an effective, automated, and scalable way.
The Operator SDK provides the tools to build, test, and package Operators. Initially, the SDK facilitates the marriage of an application’s business logic (for example, how to scale, upgrade, or backup) with the Kubernetes API to execute those operations.

— Operator SDK — Operator SDK

The OpenShift documentation has an excellent way to categorize Operators in relation to Operator SDK’s supported languages.

The level of sophistication of the management logic encapsulated within an Operator can vary. This logic is also in general highly dependent on the type of the service represented by the Operator.

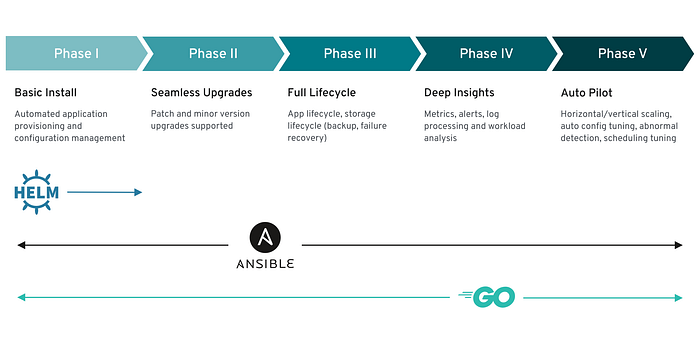

One can however generalize the scale of the maturity of an Operator’s encapsulated operations for certain set of capabilities that most Operators can include. To this end, the following Operator Maturity model defines five phases of maturity for generic day two operations of an Operator:

— OpenShift — Understanding Operators

In this article, we will use the simplest supported language, Helm, to create an Operator.

Helm

Helm helps you manage Kubernetes applications — Helm Charts help you define, install, and upgrade even the most complex Kubernetes application.

— Helm — Helm

What makes Helm particularly easy to use is that one simply creates Kubernetes object configuration files enhanced with template directives.

Prerequisites

If you are interested in following along, you will need to have:

Administrator access to a Kubernetes cluster
docker installed
Docker Hub account
Operator SDK installed
(Optional) Helm installed

The Hello Operator

In this article, we will create a simple Operator that defines a CRD with:

example.com as the Kubernetes API group
v1alpha1 as the API version
Hello as the API resource kind
The spec accepts a single optional string property; favoriteDrink; defaults to coffee

An example Custom Resource (CR) configuration file:

When such a CR is created, the Operator’s controller will create a ConfigMap with the same name as the CR and with key drink and value populated from the CR’s favoriteDrink property, i.e.:

note: Yes, this example is simple to the point of being frivolous; but the goal here is to learn the basic concepts so that one can build more meaningful Operators.

The Operator will be namespace-scoped; to the default Namespace:

A namespace-scoped operator watches and manages resources in a single namespace, whereas a cluster-scoped operator watches and manages resources cluster-wide. Namespace-scoped operators are preferred because of their flexibility. They enable decoupled upgrades, namespace isolation for failures and monitoring, and differing API definitions.

— Operator SDK — Operators and CRD scope with Operator SDK

Scaffold the Project Folder

We begin by scaffolding the project folder, hello-operator:

$ operator-sdk new hello-operator \
  --api-version=example.com/v1alpha1 \
  --kind=Hello \
  --type=helm

The scaffold implements a sample Operator; a comparatively complex one utilizing several kinds of resources. Much of our effort will be to modify various elements of the project to deliver our simple Hello Operator.

The Custom Resource Definition (CRD)

We first update the OpenAPI schema in the CRD configuration file, deploy/crds/example.com_hellos_crd.yaml, for our optional favoriteDrink property:

note: Kubernetes will validate associated CRs against the OpenAPI schema, e.g., it will reject CRs with a spec containing anything other than favoriteDrink.

We then update the example CR configuration file; deploy/crds/example.com_v1alpha1_hello_cr.yaml to adhere to the CRD specification.

We can now create the CRD:

$ kubectl apply -f deploy/crds/example.com_hellos_crd.yaml
customresourcedefinition.apiextensions.k8s.io/hellos.example.com created

and validate the creation:

$ kubectl api-resources | grep hello
hellos                                         example.com                    true         Hello

We can create the CR:

$ kubectl apply -f deploy/crds/example.com_v1alpha1_hello_cr.yaml
hello.example.com/example-hello created

and validate the creation:

$ kubectl describe hello example-hello
Name:         example-hello
Namespace:    default
Labels:       <none>
Annotations:  API Version:  example.com/v1alpha1
Kind:         Hello
Metadata:
 ...
Spec:
  Favorite Drink:  tea
Events:            <none>

Before we continue, let us delete the CR:

$ kubectl delete -f deploy/crds/example.com_v1alpha1_hello_cr.yaml
hello.example.com "example-hello" deleted

The Controller Code

First, a bit of housecleaning; we update the appVersion in helm-charts/hello/Chart.yaml to a sensible value, e.g., 0.1.0.

We set the default value for the favoriteDrinks property by replacing the content in helm-charts/hello/values.yaml with favoriteDrink: coffee.

Next we delete all the files in the helm-charts/hello/templates folder and replace them with configmap.yaml:

Observations:

With the Operator SDK, the Chart release name is the triggering CR name
Likewise, the Chart values are the CR spec properties

During development, we can run the controller locally (but still operates on the Cluster):

operator-sdk run local

We can now, as before, create the CR:

$ kubectl apply -f deploy/crds/example.com_v1alpha1_hello_cr.yaml
hello.example.com/example-hello created

This time, due to the creation of the CR, the controller creates the expected ConfigMap:

kubectl describe configmap example-hello
Name:         example-hello
Namespace:    default
Labels:       app.kubernetes.io/managed-by=Helm
Annotations:  meta.helm.sh/release-name: example-hello
              meta.helm.sh/release-namespace: defaultData
====
drink:
----
tea
Events:  <none>

note: If you have Helm installed, you can observe the Helm release.

$ helm list
NAME          NAMESPACE REVISION UPDATED                                 STATUS   CHART       APP VERSION
example-hello default   1        2020-07-07 06:21:45.798088403 -0400 EDT deployed hello-0.1.0 1.16.0

As expected, deleting the CR will also delete the ConfigMap, e.g.,

$ kubectl delete -f deploy/crds/example.com_v1alpha1_hello_cr.yaml
hello.example.com "example-hello" deleted

and

$ kubectl get configmap
No resources found in default namespace.

Controller Deployment

In your Docker Hub account, create a public repository; in my case I named it hello-operator; thus available as sckmkny/hello-operator.

We next build and tag the Docker image:

$ operator-sdk build sckmkny/hello-operator:0.1.0

We push it to Docker Hub:

$ docker push sckmkny/hello-operator:0.1.0

We next update the deploy/operator.yaml file; replacing REPLACE_IMAGE with the Docker image, e.g., sckmkny/hello-operator:0.1.0.

note: During the project scaffolding, we got a warning that we should properly configure deploy/role_binding.yaml to only allow the controller the minimal level of access; in our case only being able to operate on ConfigMaps. But, when I went to limit the controller, I got errors that the controller needed read access to Pods. Thinking determining the minimal level of access would take a fair amount of trial and error (so did not end up doing).

We can now create the controller (and supporting resources):

$ kubectl apply -f deploy
deployment.apps/hello-operator created
role.rbac.authorization.k8s.io/hello-operator created
rolebinding.rbac.authorization.k8s.io/hello-operator created
serviceaccount/hello-operator created

We confirm that the controller Pod is running:

$ kubectl get all
NAME                                  READY   STATUS    RESTARTS   AGE
pod/hello-operator-66587f9bc9-95chm   1/1     Running   0          54mNAME                             TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)             AGE
service/hello-operator-metrics   ClusterIP   10.105.83.191   <none>        8383/TCP,8686/TCP   54m
service/kubernetes               ClusterIP   10.96.0.1       <none>        443/TCP             37dNAME                             READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/hello-operator   1/1     1            1           54mNAME                                        DESIRED   CURRENT   READY   AGE
replicaset.apps/hello-operator-66587f9bc9   1         1         1       54m

With this in place we can create our CR:

$ kubectl apply -f deploy/crds/example.com_v1alpha1_hello_cr.yaml
hello.example.com/example-hello created

and verify the controller is indeed working by observing the created ConfigMap as we did earlier.

$ kubectl describe configmap example-hello
Name:         example-hello
Namespace:    default
Labels:       app.kubernetes.io/managed-by=Helm
Annotations:  meta.helm.sh/release-name: example-hello
              meta.helm.sh/release-namespace: defaultData
====
drink:
----
tea
Events:  <none>

Wrap Up

That is about it, a simple Operator using Helm. Of course, one can create more complex Operators using Operator SDK with either the Ansible or Go languages.
