Xamarin List view guide
This article will guide you through the steps of creating a typical list / detail app using Xamarin Forms. The advantage of using Xamarin Forms is that we will obtain a native Android and iOS apps using a single C# / XAML codebase.
I am using macOS and Visual Studio Community for macOS but you can also follow the guide on Windows by using Visual Studio.
Let’s start by the beginning of all projects; which is creating it 😺.
Creating the project
Open Visual Studio and create a new Project:
- Choose Blank App
- Enter a name, check both iOS and Android checkboxes (any other platforms if available) as well as the one for using XAML. Make sure to choose Potable class library option (the first one).
- Continue until you click on the Create button.
We should obtain a minimal solution that contains three projects (or more if you are on Windows 😄 ), the portable project, the iOS one and the Android one. We will only work on the portable project for 100% code sharing.
Before Starting to code, let’s create some folders to organize our code. There will be 4 main folders: Views, ViewModels, Models and Helpers. Also, delete all XAML and XAML.CS files except App.xaml and App.xaml.cs.
As a reminder, we are creating a Xamarin forms app that fetches a list of items from the internet and shows in on a scrollable list. Each row of the list will display an item with some text content and a thumbnail. We are not going to developer neither the JSON API nor the thumbnail server. Instead, we’ll use a free JSON generator for developers jsonplaceholder.typicode.com and a free image generator picsum.photos.
In the next section, we will create the main view.
The ItemListView
The main view of this tutorial shows random posts from jsonplaceholder post API and associates each one with a random thumbnail downloaded from picsum.photos. In this section, we will create the model, the view and its view model with hard coded content but won’t fetch any data from the network. Without further due, let’s get going.
Firstly, in the Models folder, create a new class called Post.cs which represents a single post. Add the following properties: Title, UserId, Id, Body, ÌmageUrl. The first four properties will be later mapped from the Json reponse of the jsonplaceholder post API while the ImageUrl will be manually generated from code.
The Post class should look like this:
Secondly, create the view model class ItemListViewModel (a view model can be seen as an object that handles the data that will be displayed by the view). It defines the Posts of type ObservableCollection<Post>. This property stores the current list of posts and is well suited for finding to a visual component because it is an ObservableCollection. In addition to that, the view model inherits from a class called BaseViewModel. It is usual in MVVM to have this kind of base class that simplifies binding. Here is its definition that you just need to copy and paste.
The ItemListViewModel class should look like this.
Note that in the constructor, we add two hard coded posts for the purpose of testing that binding the view model to the view actually works. We will replace it later with the content fetched from the API 😄.
The third and last step in this section is to create the view that shows the Posts from the view model. In the Views folder, create a Content Page XAML form by right clicking on that folder, then by choosing Add -> New file -> Content Page XAML form. You can name it ItemListPage.xaml.
After that, Open the code behind file ItemListPage.xaml.cs. There, define an ItemListViewModel instance variable and set it as a BindingContext in the constructor. The BindingContext tells Xamarin which object is used when binding with visual components. The code behind should resemble to the following code:
Next, open the XAML file where we create a ListView control that binds to the Posts property of the BindingContext (which is an instance of ItemListViewModel). The visual representation of each item of the list can be defined using ListViewItem.ItemTemplate tag. The very interesting thing is that inside this tag, we are automagically bound to the current Post item. For example, this snippet shows the titles of the posts.
The following XAML file is more interesting because it shows also an image which is bound to the ImageUrl. Here is the full content of ItemListPage.xaml.
Finally, in the App.xaml.cs's constructor, set the MainPage to be an instance of ItemListPage as follows.

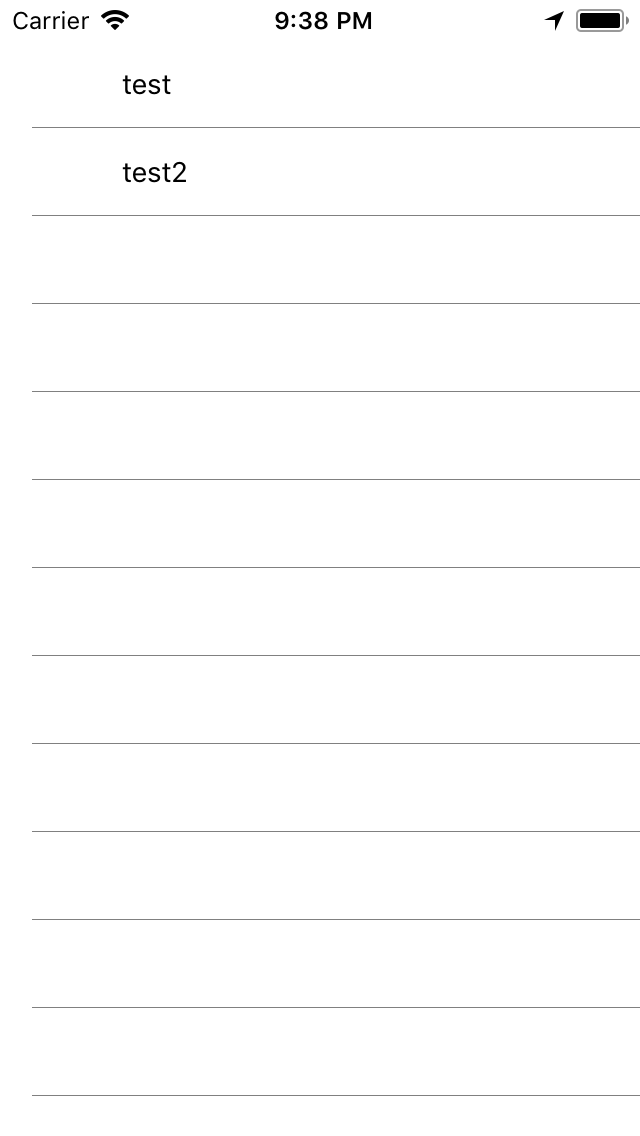

Run the app on iOS or Android, you should see a similar screen to this screenshot:
In the next section, we will download the posts from the internet and display them on the list as soon as they are available 💪.
Fetching JSON from the internet
Downloading JSON files and parsing in Xamarin is very easy thanks to .Net Standard. In fact, downloading data using HttpClient and parsing it using Newtonsoft.Json requires a little bit code.
As a proof, here is the snippet that downloads the posts from the API:
Parsing is also straight forward after annotating the Post class:
Now that you are convinced 😜, let’s implement that.

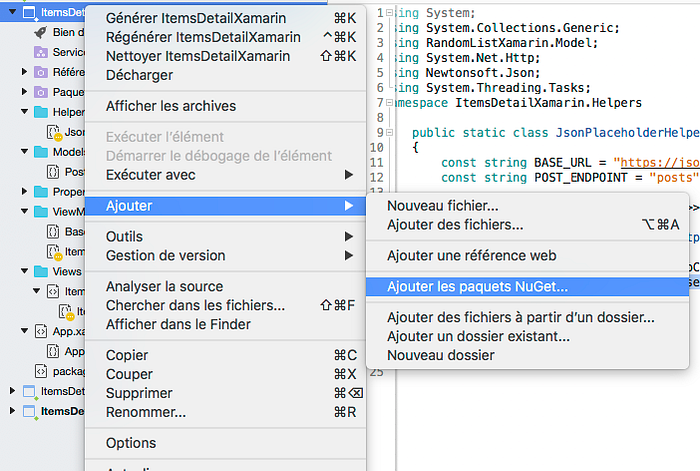

First of all, add the Newtonsoft.Json library to the project using NuGet. Right-click on the common project and choose Add -> Add NuGet package
Look for Newtonsoft.Json and add it to the portable class library project.
We can now fully implement our logic. Continue by adding somme attributes to the properties of the Post class. They tell the Json parser how to map the properties from the Json string to the properties of the Post class. To better understand, let's look at a snippet of the Json received by calling https://jsonplaceholder.typicode.com/posts.
Here, we want to map userId field of the Json with the UserId field of the Post class and so on. We do this by putting [JsonProperty("userId")] before the UserId property declaration.
Here is the updated Posts class with all the annotations:
No surprise here. Note that we didn’t map the ImageUrl property since it is not present in the Json API. But we still need it for later use. The next step consists of downloading and parsing the Json file.
If you remember, I already showed how to download a Json file and also how to parse it. Let’s put that together in a GetPostsAsync method. Since this is more of a helper method, please define it in the JsonPlaceholderHelper static class and place it inside the Helpers folder. That's some clean organization 📁.
Here is the content of the JsonPlaceholderHelper class:
There are two more things to do before getting the posts displayed. The first one consists in adding a method to the view model that calls the previously defined helper method and sets the returned posts to the Posts collection. Please add this method to the ItemListViewModel
The last thing to code is to fire the UpdatePostsAsync in order to get content. There are many ways to do it. One solution is to override the OnAppearing method of ItemListPage because it is automatically called just before the page appears. Again, please add this code to ItemListPage.xaml.cs's ItemListPage class.

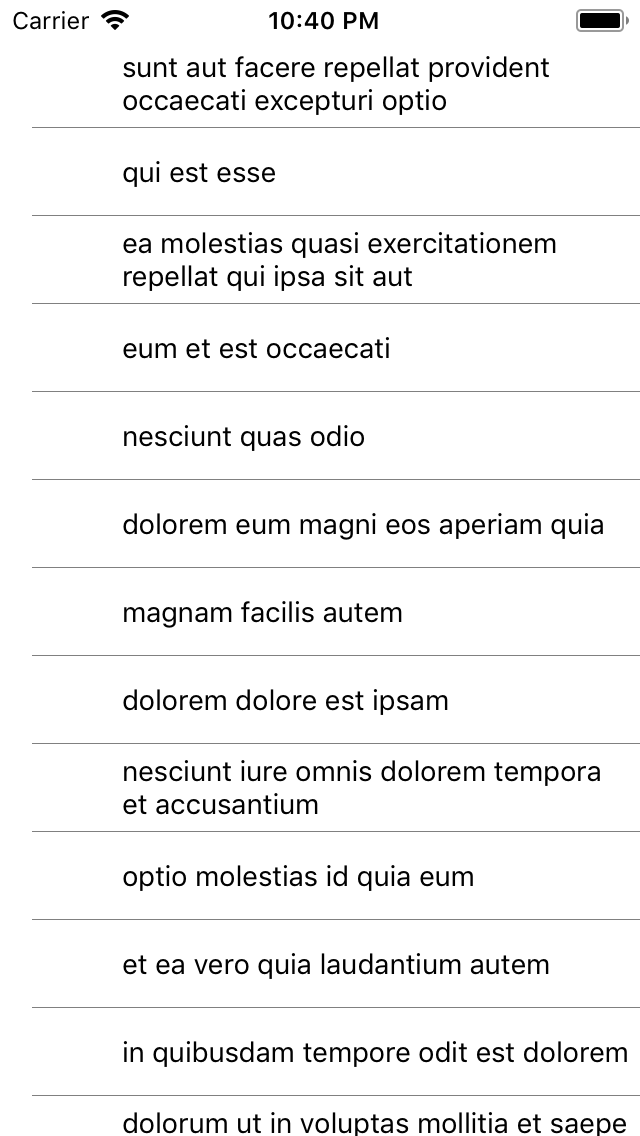

Launch the app again. Wow it works 🎇. However, there are no thumbnails yet. The next section deals with that.
Displaying thumbnails
As the previous tasks, showing thumbnails is very easy. Since the ImageUrl property was already bound to list items, we just need to set a correct ImageUrl and that's it. Xamarin automatically, downloads the images, show it and as a bonus, caches it for us.
In this guide, we are going to download images from picsum.photos, particularly this type of url: [https://picsum.photos/70/?image={an integer value}](https://picsum.photos/70/?image=[an integer value) where the integer value corresponds to the index of the post in the list. For example the thumbnail url of the post at index 57 is https://picsum.photos/70/?image=58. In code, update the UpdatePostsAsync method as follows:
The trick is to set the image url before adding it to the Posts collection.

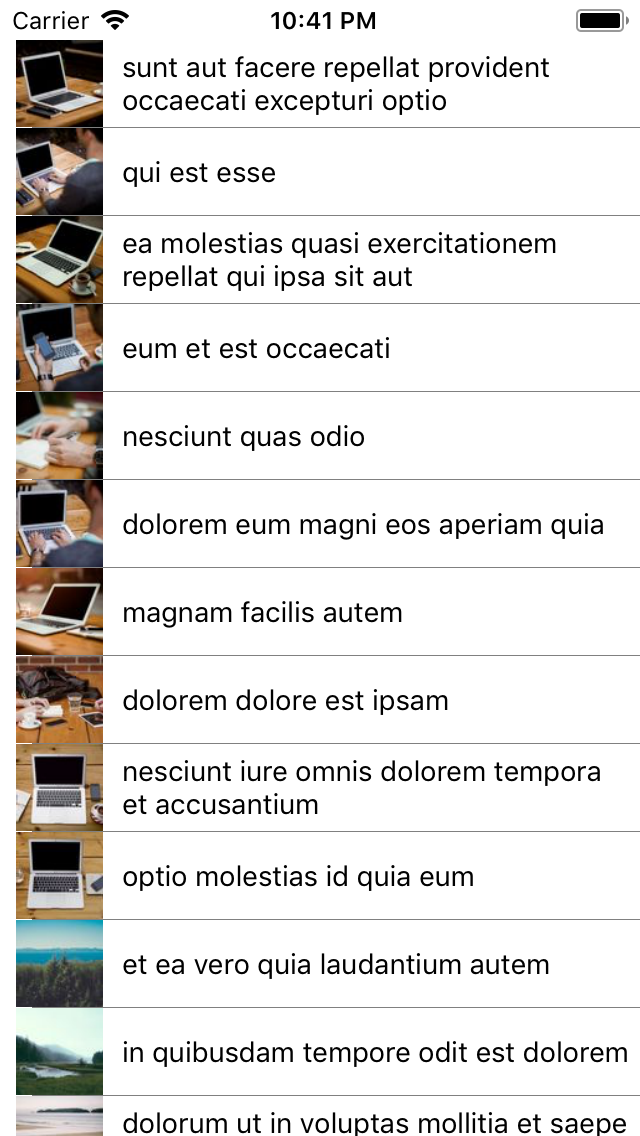

If you run the app, the thumbnails should be shown progressively.
And that’s all folks for now 🐇.
Conclusion and going further
This guide showed how to create a Xamarin app that downloads a Json array, parses it and shows it on a list along with thumbnails. Thanks to the Xamarin SDK and .Net Standard, we did not write a lot of code and we can run this app on both iOS and Android devices.
Further improvements can be implemented. For example, the list of posts can be persisted for offline use. Also, we can display a placeholder for thumbnails using the FFImageLoading library.
I hope you liked working with Xamarin as much as myself 😃.
The project source is on GitHub. Happy coding.
